Product Summary

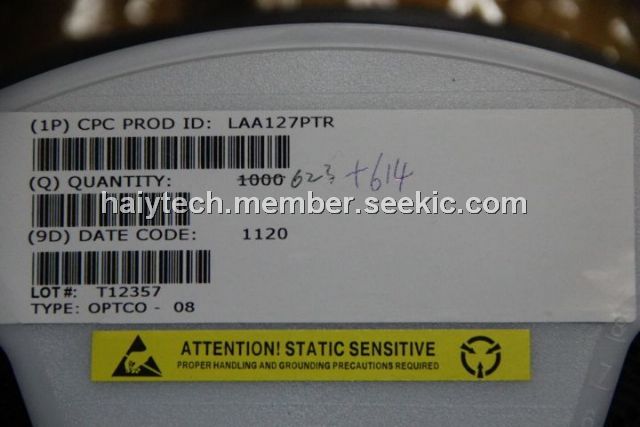

The LAA127PTR is a 250V, 200mA, 10Ω dual normally open (1-Form-A) Solid State Relay that comprises two independently controlled, optically coupled MOSFET switches. The LAA127PTR is ideal for: (1)Telecommunications; (2)Instrumentation; (3)Medical Equipment-Patient/Equipment Isolation; (4)Security; (5)Aerospace; (6)Industrial Controls.
Parametrics
LAA127PTR absolute maximum ratings: (1)Blocking Voltage: 250 VP; (2)Reverse Input Voltage: 5 V; (3)Input Control Current: 50 mA; Peak (10ms): 1 A; (4)Input Power Dissipation: 150 mW; (5)Total Power Dissipation: 800 mW; (6)Isolation Voltage, Input to Output: 3750 Vrms; (7)Operational Temperature: -40 to +85 ℃; (8)Storage Temperature: -40 to +125 ℃.
Features
LAA127PTR features: (1)3750Vrms Input/Output Isolation; (2)Low Drive Power Requirements (TTL/CMOS Compatible); (3)High Reliability; (4)Arc-Free With No Snubbing Circuits; (5)FCC Compatible; (6)VDE Compatible; (7)No EMI/RFI Generation; (8)Small 8-Pin Package; (9)Machine Insertable, Wave Solderable; (10)Surface Mount Tape & Reel Versions Available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LAA127PTR |
Clare |
Solid State Relays Dual Pole |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
LAA100LSTR |
Clare |
Solid State Relays Dual Pole |
Data Sheet |
Negotiable |
|
||||
|
LAA110S |
Clare |
Solid State Relays DPST-NO/NO 8PIN DIP |
Data Sheet |
Negotiable |
|
||||
|
LAA120LS |
Clare |
Solid State Relays Dual Pole |
Data Sheet |
Negotiable |
|
||||
|
LAA108STR |
Clare |
Solid State Relays TWO INDEPENDANT, 100V, 8 OHM, 1-FORM-A OPTICALLY ISOLATED MOSFET OPTO SEMICONDUCTOR IC, GULLWING, TAPE/REEL |
Data Sheet |
Negotiable |
|
||||
|
LAA108S |
Clare |
Solid State Relays TWO INDEPENDANT, 100V, 8 OHM, 1-FORM-A OPTICALLY ISOLATED MOSFET OPTO SEMICONDUCTOR IC, GULLWING |
Data Sheet |
Negotiable |
|
||||
|
LAA108P |
Clare |
Solid State Relays TWO INDEPENDANT, 100V, 8 OHM, 1-FORM-A OPTICALLY ISOLATED MOSFET OPTO SEMICONDUCTOR IC, FLATPACK |
Data Sheet |
Negotiable |
|
||||
