Product Summary

The LM833D is a monolithic dual operational amplifier particularly well-suited to audio applications.The LM833D is ideal for: (1)Audio systems; (2)Preamplification, filtering.

Parametrics

LM833D absolute maximum ratings: (1)VCC, Supply voltage: ±18 or +36 V; (2)Vid, Differential input voltage: ±30 V; (3)Vi, Input voltage: ±15 V; (4)Tj, Junction temperature: +150 ℃; (5)Tstg, Storage temperature: -65 to +150 ℃; (6)Ptot, Maximum power dissipation: 500 mW.

Features

LM833D features: (1)Low voltage noise: 4.5 nV/√Hz; (2)High gain bandwidth product: 15 MHz; (3)High slew rate: 7 V/μs; (4)Low distortion: 0.002%; (5)Excellent frequency stability; (6)ESD protection 2 kV.

Diagrams

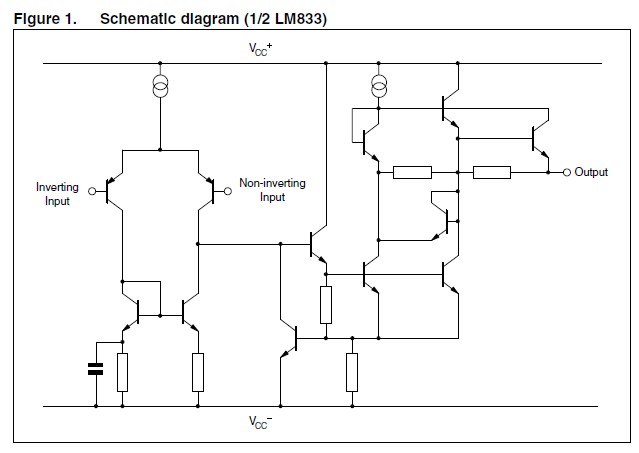

LM833D circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM833DGKR
LM833DGKR
Texas Instruments
Audio Amplifiers Dual High-Speed Aud Op Amp
Data Sheet
0-1: $0.47
1-25: $0.36
25-100: $0.32
100-250: $0.28
LM833DGKT
LM833DGKT
Texas Instruments
Audio Amplifiers Dual High-Speed Aud Op Amp
Data Sheet
0-1: $0.64
1-25: $0.51
25-100: $0.46
100-250: $0.41
LM833DR2G
LM833DR2G
ON Semiconductor
Audio Amplifiers Lo Noise Audio Dual Industrial Temp
Data Sheet
0-1: $0.41
1-25: $0.31
25-100: $0.26
100-500: $0.19
LM833DT
LM833DT
STMicroelectronics
Audio Amplifiers Dual Low Noise
Data Sheet
0-1: $0.26
1-10: $0.22
10-100: $0.19
100-250: $0.17
LM833DR2
LM833DR2
ON Semiconductor
Audio Amplifiers Lo Noise Audio Dual
Data Sheet
Negotiable
LM833DR
LM833DR
Texas Instruments
Audio Amplifiers Dual High-Speed Aud Op Amp
Data Sheet
0-1: $0.47
1-25: $0.36
25-100: $0.32
100-250: $0.23
LM833DG
LM833DG
ON Semiconductor
Audio Amplifiers Lo Noise Audio Dual Industrial Temp
Data Sheet
0-1: $0.31
1-25: $0.26
25-100: $0.18
100-500: $0.15
LM833D
LM833D
STMicroelectronics
Audio Amplifiers Dual Low Noise
Data Sheet
0-1: $0.57
1-10: $0.45
10-100: $0.40
100-250: $0.35
