MOCD217R2VM

MOCD217R2VM, Dual Channel Phototransistor, 8SOIC, 30 V, 60 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.13~0.15 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.13~0.15

PartNumber:: MOCD217R2VM

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. DAVE's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-29

From Other Seller

Part Number:MOCD217R2VM
US $0.13 - 0.15
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

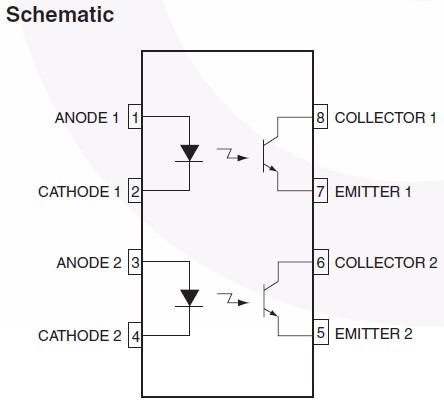

The MOCD217R2VM Dual Channel Phototransistor consists of two gallium arsenide infrared emitting diodes optically coupled to two monolithic silicon phototransistor detectors, in a surface mountable, small outline plastic package. The MOCD217R2VM is ideally suited for high density applications and eliminates the need for through-the-board mounting. The MOCD217R2VM is ideal for: (1)Interfacing and coupling systems of different potentials and impedances; (2)General purpose switching circuits; (3)Monitor and detection circuits.

Parametrics

MOCD217R2VM absolute maximum ratings: (1)VCEO, Collector-Emitter Voltage: 30 V; (2)VECO, Emitter-Base Voltage: 7.0 V; (3)IC, Collector Current-Continuous: 150 mA; (4)IF, Forward Current – Continuous: 60 mA; (5)IF(pk), Forward Current – Peak (PW = 100μs, 120 pps): 1.0 A; (6)VR, Reverse Voltage: 6.0 V; (7)VISO, Input-Output Isolation Voltage (f = 60Hz, t = 1 min.): 2500 Vac(rms); (8)PD, Total Device Power Dissipation @ TA= 25℃: 250 mW; (9)TA, Ambient Operating Temperature Range: -40 to +100 ℃; (10)Tstg, Storage Temperature Range: -40 to +150 ℃.

Features

MOCD217R2VM features: (1)UL recognized (File #E90700, Volume 2); (2)VDE recognized (File #136616) (add option V for VDE approval, i.e, MOCD217VM); (3)Low input current (specified @ 1mA); (4)Minimum BVCEO of 30 Volts guaranteed; (5)Convenient plastic SOIC-8 surface mountable package style; (6)Standard SOIC-8 footprint, with 0.050" lead spacing; (7)Compatible with dual wave, vapor phase and IR reflow soldering; (8)High input-output isolation of 2500 VAC(rms) guaranteed.
