Product Summary
The NCS2553DR2G is a 3-channel high speed video amplifier with 6th order butterworth standard definition reconstruction filter. All three channels can accommodate either all component and RGB video signals or composite and Video signals. All channels can accept DC or AC coupled signals. If AC coupled, the internal clamps are employed. The outputs can drive both AC and DC coupled 150Ω loads. The NCS2553DR2G is designed to be compatible with most digital-to-analog converters (DAC) embedded in most video processors. The NCS2553DR2G is ideal for: (1)Digital Set-Top Box; (2)DVD / Video Players and Related; (3)SD-TV; (4)Video On Demand (VOD); (5)Video Recorders.
Parametrics
NCS2553DR2G absolute maximum ratings: (1)Power Supply Voltages, VCC: -0.35≦VCC≦5.5 Vdc; (2)Input Voltage Range, VI: -0.3≦VI≦VCC Vdc; (3)Input Differential Voltage Range, VID: VI≦VCC Vdc; (4)Output Current, IO: 50 mA; (5)Maximum Junction Temperature, TJ: 150 ℃; (6)Operating Ambient Temperature, TA: -40 to +85 ℃; (7)Storage Temperature Range, Tstg: -60 to +150 ℃; (8)Thermal Resistance, Junction to Air, RθJA: 112.7 ℃/W.
Features
NCS2553DR2G features: (1)Three 6th Order Standard Definition 8 MHz Filters; (2)Internally Fixed Gain = 6 dB; (3)AC- or DC- Coupled Inputs; (4)AC- or DC- Coupled Outputs; (5)Integrated Level Shifter; (6)Operating Voltage +5 V; (7)Available in a SOIC-8 Package; (8)These are Pb-Free Devices.

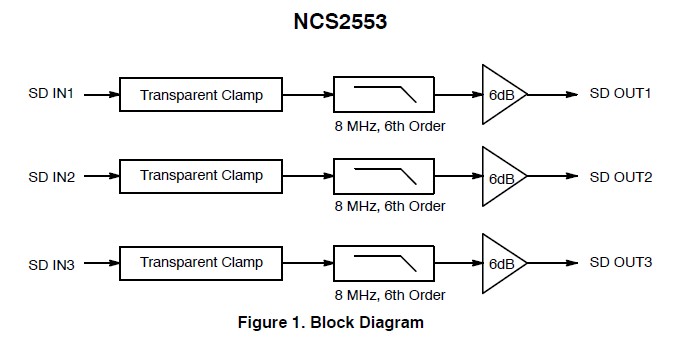

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NCS2553DR2G |
ON Semiconductor |
Video Amplifiers TRPL V-AMP 8M FILTER |
Data Sheet |
|
|
||||||||||||
