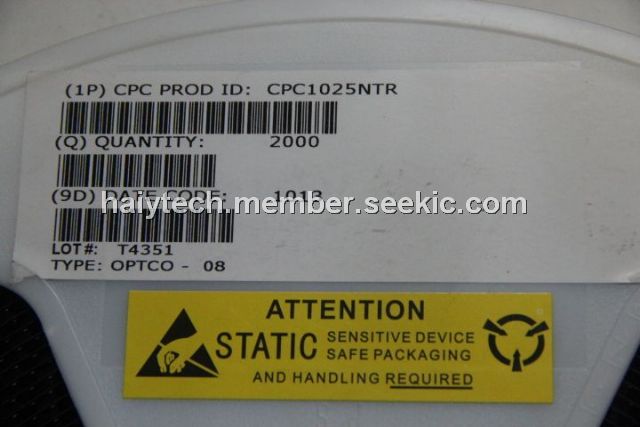

CPC1025NTR

CPC1025NTR, 1-Form-A solid state relay, SOP-4, 400 V, 1 A

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.25~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.25~0.30

PartNumber:: CPC1025NTR

Brand:: Clare, Inc. - CLARE | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. DAVE's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-29

From Other Seller

Part Number:CPC1025NTR
US $0.25 - 0.30
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

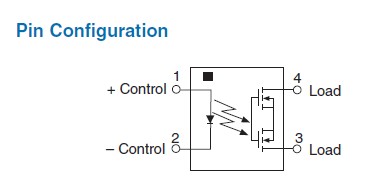

The CPC1025NTR is a miniature normally open (1-Form-A) solid state relay in a 4-lead SOP package that employs optically coupled MOSFET technology to provide 1500Vrms of input to output isolation. The efficient MOSFET switches and photovoltaic die use Clare patented OptoMOS architecture while the optically coupled output is controlled by a highly efficient GaAIAs infrared LED. The CPC1025NTR is ideal for: (1)Telecommunications; (2)Instrumentation; (3)Medical Equipment-Patient/Equipment Isolation; (4)Security; (5)Aerospace; (6)Industrial Controls.

Parametrics

CPC1025NTR absolute maximum ratings: (1)Blocking Voltage: 400 VP; (2)Reverse Input Voltage: 5 V; (3)Input Control Current: 50 mA; Peak (10ms): 1 A; (4)Input Power Dissipation: 70 mW; (5)Total Power Dissipation: 400 mW; (6)Capacitance, Input to Output: 1 pF; (7)Isolation Voltage, Input to Output: 1500 Vrms; (8)Operational Temperature: -40 to +85℃; (9)Storage Temperature: -40 to +125℃.

Features

CPC1025NTR features: (1)1500Vrms Input/Output Isolation; (2)Small 4-Lead SOP Package; (3)Low Drive Power Requirements (TTL/CMOS Compatible); (4)No Moving Parts; (5)High Reliability; (6)Arc-Free With No Snubbing Circuits; (7)No EMI/RFI Generation; (8)Machine Insertable, Wave Solderable; (9)Tape & Reel Version Available.
