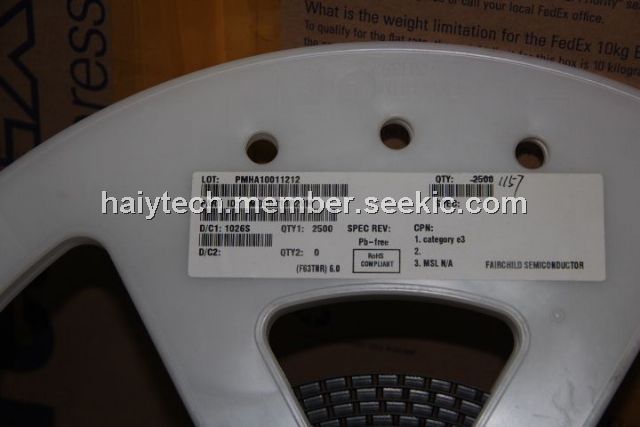

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. DAVE's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-07

From Other Seller

Part Number:MOCD213R2VM
US $0.20 - 0.40
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

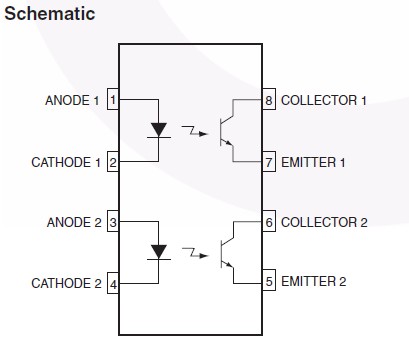

The MOCD213R2VM Dual Channel Phototransistor consists of two gallium arsenide infrared emitting diodes optically coupled to two monolithic silicon phototransistor detectors, in a surface mountable, small outline plastic package. It is ideally suited for high density applications and eliminates the need for through-the-board mounting. The MOCD213R2VM is ideal for: (1)Feedback control circuits; (2)Interfacing and coupling systems of different potentials and impedances; (3)General purpose switching circuits; (4)Monitor and detection circuits.

Parametrics

MOCD213R2VM absolute maximum ratings: (1)VCEO, Collector-Emitter Voltage: 70 V; (2)VECO, Emitter-Base Voltage: 7.0 V; (3)IC, Collector Current-Continuous: 150 mA; (4)IF, Forward Current – Continuous: 60 mA; (5)IF(pk), Forward Current – Peak (PW = 100μs, 120 pps): 1.0 A; (6)VR, Reverse Voltage: 6.0 V; (7)VISO, Input-Output Isolation Voltage (f = 60Hz, t = 1 min.): 2500 Vac(rms); (8)PD, Total Device Power Dissipation @ TA= 25℃: 250 mW; (9)TA, Ambient Operating Temperature Range: -40 to +100 ℃; (10)Tstg, Storage Temperature Range: -40 to +150 ℃.

Features

MOCD213R2VM features: (1)U.L. recognized (File #E90700, Volume 2); (2)VDE recognized (File #136616) (add option V for VDE approval, i.e, MOCD213VM); (3)Dual channel coupler; (4)Convenient plastic SOIC-8 surface mountable package style; (5)Minimum current transfer ratio 100% with input current of 10mA; (6)Minimum BVCEO of 70 Volts guaranteed; (7)Standard SOIC-8 footprint, with 0.050" lead spacing; (8)Compatible with dual wave, vapor phase and IR reflow soldering; (9)High input-output isolation of 2500 V AC(rms) guaranteed.
