Product Summary
The PACVGA200QR VGA Port Companion Circuit incorporates seven channels of ESD protection for all signal lines commonly found in a VGA port. ESD protection is implemented with current steering diodes designed to safely handle the high surge currents encountered with IEC−61000−4−2 Level−4 ESD Protection (±8 kV contact discharge). When a channel is subjected to an electrostatic discharge, the ESD current pulse isdiverted via the protection diodes into either the positive supply rail or ground where it may be safely dissipated. Separate positive supply rails are provided for the VIDEO, DDC and SYNC channels to facilitate interfacing with low voltage Video Controller ICs and provide design flexibility in multi−supply−voltage environments. The PACVGA200QRis ideal for: (1)Notebook Computers with VGA Port; (2)Desktop PCs with VGA Port.
Parametrics
PACVGA200QR absolute maximum ratings: (1)VCC1, VCC2, VCC3 and VCC4 Supply Voltage: [GND-0.5] to +6.0 V; (2)Diode D1 Forward DC Current: 100 μA; (3)Storage Temperature Range: -65 to +150 ℃; (4)Package Power Rating: 1000 mW.
Features
PACVGA200QR features: (1)Single Chip Solution for the VGA Port Interface; (2)Includes ESD Protection, Level Shifting, and RGB Termination; (3)Seven Channels of ESD Protection for All VGA Port Connector Pins Meeting IEC.61000.4.2 Level.4 ESD Requirements (±8 kV Contact Discharge); (4)Very Low Loading Capacitance from ESD Protection Diodes on VIDEO Lines, 4 pF Typical; (5)75Ω Termination Resistors for VIDEO Lines (Matched to 1% Typ.); (6)TTL to CMOS Level.Translating Buffers with Power Down Mode for HSYNC and VSYNC Lines; (7)Bi.Directional Level Shifting N.Channel FETs Provided for DDC_CLK & DDC_DATA Channels; (8)Compact 24.Pin QSOP Package; (9)These Devices are Pb Free and are RoHS Compliant.

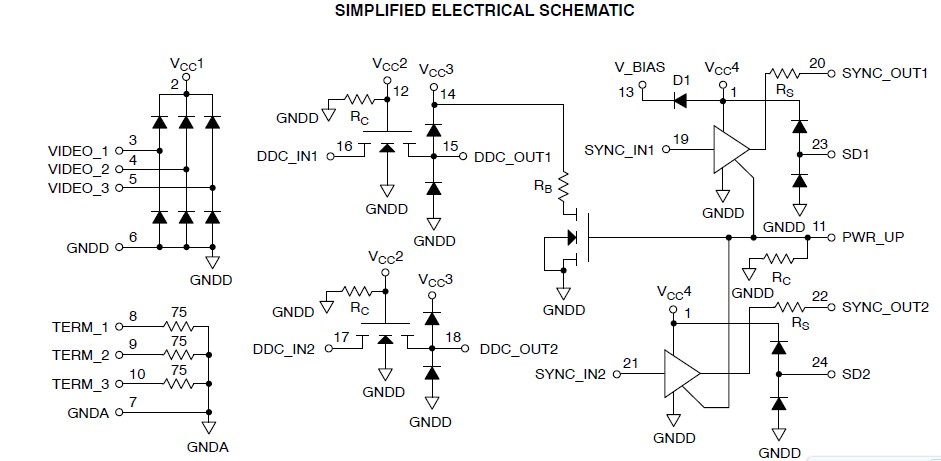

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

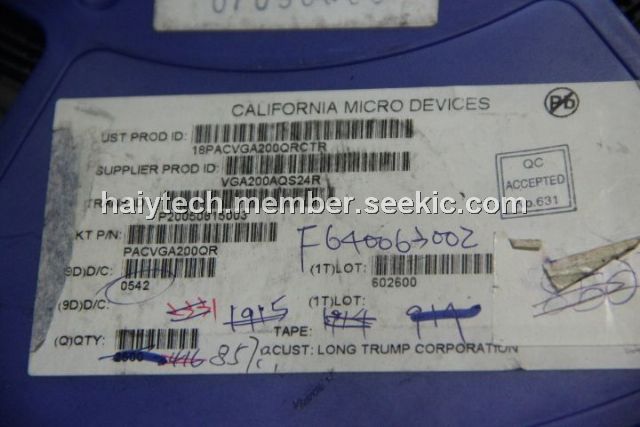

 PACVGA200QR |
ON Semiconductor |
ESD Suppressors Circuit w/ 75 ohm R 24-Pin |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
PACVGA105 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
PACVGA105QR |
ON Semiconductor |
Video ICs ESD Net. VGA Port |
Data Sheet |
|
|
||||||||||||
|
PACVGA200 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
PACVGA200QR |
ON Semiconductor |
ESD Suppressors Circuit w/ 75 ohm R 24-Pin |
Data Sheet |
|
|
||||||||||||
|
PACVGA201 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
PACVGA201QR |
ON Semiconductor |
ESD Suppressors ESD Net VGA Port Companion Circuit |
Data Sheet |
|
|
||||||||||||
